General |
| Control panel |
4.3 inch touch screen |
| Processor speed |
1.0 GHz |
| Memory |
2GB |
| Flash memory |
32GB EMMC |
| Recommended Monthly Page Volume |
4000 pages/month |
| Maximun Monthly duty cycle |
6000 pages/month |
| Connectivity |
USB3.0（compatible with USB2.0）, IEEE 802.3 10/100/1000Base-Tx, WiFi（2.4G/5G）IEEE 802.11a/b/g/n |
| Power |
110V：AC100-127V(±10%),50/60Hz(±3Hz),12A
220V：AC220-240V(-15%,＋10%),50/60Hz(±3Hz)，6A |
| Power Consumption |
Run:under 1.1KW
Ready:under 35W
Sleep:under 1W
Power off:under 0.5W |
| China Energy Efficiency Rating |
Typical energy consumption level 1 |
| Noise |
Print、Scan：less than 54dB（A）
Copy：less than 57dB（A） |
| Operating Environment |
Temperature：10-32℃
Humidity：20-80%
Altitude: below 3000m |
|
Print |
| Speed |
25ppm |
| Duplex Print Speed |
18ipm |
| First Print out time |
Mono：7s
Color：9.4s |
| Print Languages |
PCL6、PS3、PDF |
| Duplex printing |
Automatic double-sided as standard |
| USB disk printing |
Yes |
| Mobile printing |
Option：CPWF-230
Android/iOS APP、Airprint、Mopria |
| Operation system |
Windows XP(sp3 and above）/Windows7/Windows8/Windows8.1/ Windows10/ Windows11/ Windows server/2008/2012/2016
Mac10.9/10.10/10.11/10.12/10.13/10.14/10.15/11/12/13/14/14.1/14.2/14.3
ubuntu16.04、18.04、20.04、22.04
Debian 10.0/Centos 7（32/64 Bit）、Astra Linux Special Edition V1.6/Redhat 8.2.0 and above/ Centos 8.2(64 Bit) |
| Other |
Password printing, sample printing, U disk printing, delayed printing, paging seal |
|
Copy |
| Copy Speed |
25ppm |
| Duplex copy speed |
14ipm |
| First copy out time |
Mono:10s
Color:12s |
| Copy mode |
Text/Image, Image, Text, Automatic |
| Copy Resolution (max.dpi) |
Max 600x600dpi |
| Copy reduce / enlarge settings |
25-400% |
| Maximum copy pages |
999 pages |
| Other |
ID copy, Mixed copying, Watermark copying, Booklet copying, Edge removal, Sample copying, paging function, Interrupt copy |
|
Scan |
| Scanning Technology |
CIS |
| Scanner type |
Flatbed |
| scan mode |
Color, grayscale,Mono |
| Scan resolution |
Max：600x600dpi |
| Maximum scan size |
Max：A3、11"×17" |
| Scan Destinations |
Scan to PC, Email, SMB, FTP, USB |
| Scanning file formats |
Push scan to SMB，Email，FTP，U disk：TIFF，JPEG，PDF
Push scan to PC(Windows/Mac)：TIFF，JPEG，PDF， OFD, BMP
Pull scan to PC(Windows)：TIFF，JPEG，PDF ，OFD, BMP，PNG |
| Pantum scanning software |
Yes |
| 0thers |
Scan Preview (Pull Scan), OCR (Pull Scan), Mixed Size Scan |
|
Paper handling |
| Paper Input Capacity |
Standard：250 pages，
Multipurpose tray：100 pages
Optional tray：550 pages（Maximum：2）
Max: 1450 pages |
| Paper output capacity |
250 page（A4 landscape） |
| Paper output full dectation |
No |
| Options |
CPT-230：550 pages（Maximum：2）
CPC-230：Cabinet |
| Media types(single-sided) |
Plain paper（60-69gsm），Plain paper（70-90gsm），
Recycled paper（60-90gsm), Thick paper：91-216gsm，Postcards, envelopes, label paper |
| Media sizes(single-sided) |
Standard Paper tray / optional paper tray：A3, A4, A5, JIS B4, JIS B5, ISO B5, 11"×17", LTR, 8K, 16K, Legal, Statement, executive, Folio, Oficio
Multipurpose tray：A3, A4, A5, A6, JIS B4, JIS B5, ISO B5, 11" ×17", LTR, 8K, 16K, Legal,Statement, No.10 envelop, Monarch envelop, DL envelop, C5 envelop, C6 envelop, executive, Folio,Oficio, postcard
Customize ：
Standard Paper tray：140*180mm~297*420mm
Optional paper tray：140*180mm~297*432mm
Multipurpose tray（Single-sided printing）：95*139.7mm~297*432mm |
| Media weights |
Standard / optional paper tray：60-120g/㎡
Multipurpose tray：60-216g/㎡ |
|
Consumable |
| Consumable Type |
Toner Cartridge & Drum Unit |
| Starter consumables |
Toner：
CTL-2300K：3000 pages，
CTL-2300Y：2000 pages
CTL-2300M：2000 pages

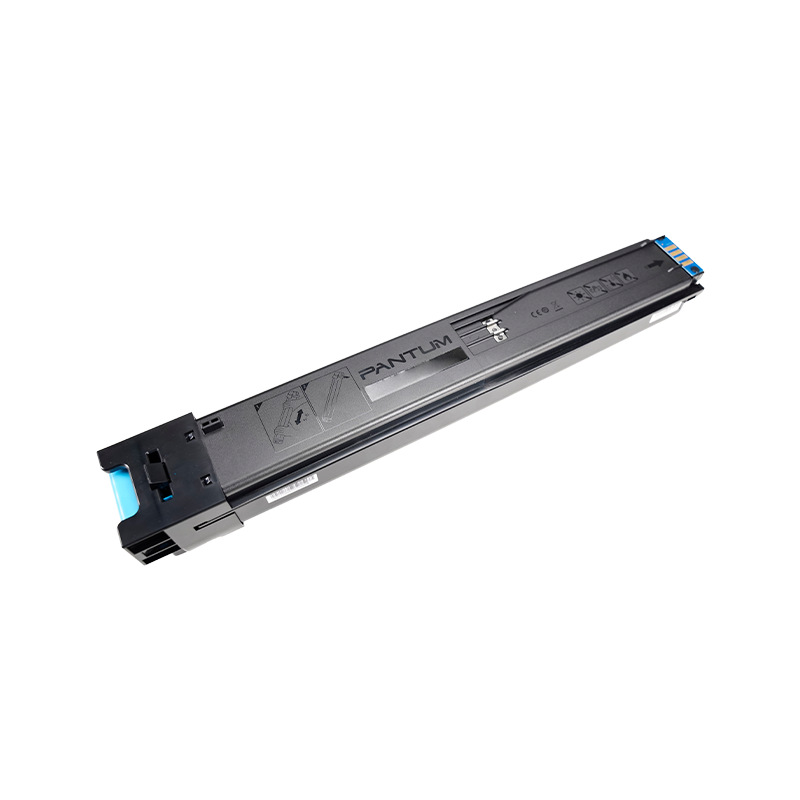

CTL-2300C：2000 pages
Drum Unit：：
CDL-2300K：60000 pages
CDL-2300Y：60000 pages
CDL-2300M：60000 pages
CDL-2300C：60000 pages
Waste Toner Bottle:
CWT-2300：18000 pages |
| Customer consumables |
Toner Cartridge：
CTL-2300K：3000 pages，
CTL-2300Y：2000 pages
CTL-2300M：2000 pages
CTL-2300C：2000 pages
High capacity toner：
CTL-2300HK：15000 pages，
CTL-2300HY：12000 pages
CTL-2300HM：12000 pages
CTL-2300HC：12000 pages
Drum Unit：：
CDL-2300K：60000 pages
CDL-2300Y：60000 pages
CDL-2300M：60000 pages
CDL-2300C：60000 pages
Waste Toner Bottle:
CWT-2300：18000 pages |
|
Packaging |
| Product Dimensions (d*w*h) |
630*565*572 mm(Machine)
630*565*707 mm(Machine＋Single-layer tray)
630*565*1007 mm(Machine+Single-layer tray+workbench)
630*565*842 mm(Machine+Double-walled cartons)
630*565*1142 mm(Machine+Double-walled cartons+workbench) |
| Package Dimensions（ (d*w*h) |
727*655*880 mm（Pallet included） |
| Product net weight（kg） |
net weight without Supplies：52KG
net weight with Supplies：54.5KG |
| Product gross weight（kg） |
68.6KG（Packed with pallets） |
| Consumables size(w*d*h) |
K：480*71*88mm
Y、M、C：480*71*88mm
Drum unit：465*75*93mm
Waste toner box：490*159*114mm |
| Consumables packing size(w*d*h) |
K：522*128*120mm
Y、M、C：522*128*120mm
Drum unit：564*185*201mm
Waste toner box：518*175*131mm |
| Net weight of consumables（kg） |
High capacity K：709g±5g;
Y、M、C：654g±5g;
Low capacity K：434±5g
Y、M、C：414±5g
Drum unit：1592±5g
Waste toner box：656±5g |
| Gross weight of consumables（kg） |
High capacity K：1025g； FCL：10300g
High capacity Y、M、C：975g ； FCL：9860g
Low capacity K：750g； FCL：7825g
Low capacity Y、M、C：700g ； FCL：7358g
Drum unit：2224g：FCL：9960g
Waste toner box：994g：FCL：4800g |
|
