Model |
|
Print |
| Print Speed |
30ppm |
| Duplex Print Speed |
20ipm |
| Warming up time |
28s |
| First Print out time |
9.1s |
| Maximum Monthly Duty Cycle*1 |
52000 pages |
| Recommanded Monthly Duty Cycle |
6000 pages/month |
| Print Languages |
PCL5/PCL6 |
| Processor speed |
1296MHz dual core |
| Standard Memory |
4GB |
| Hard Disk |
128GB standard |

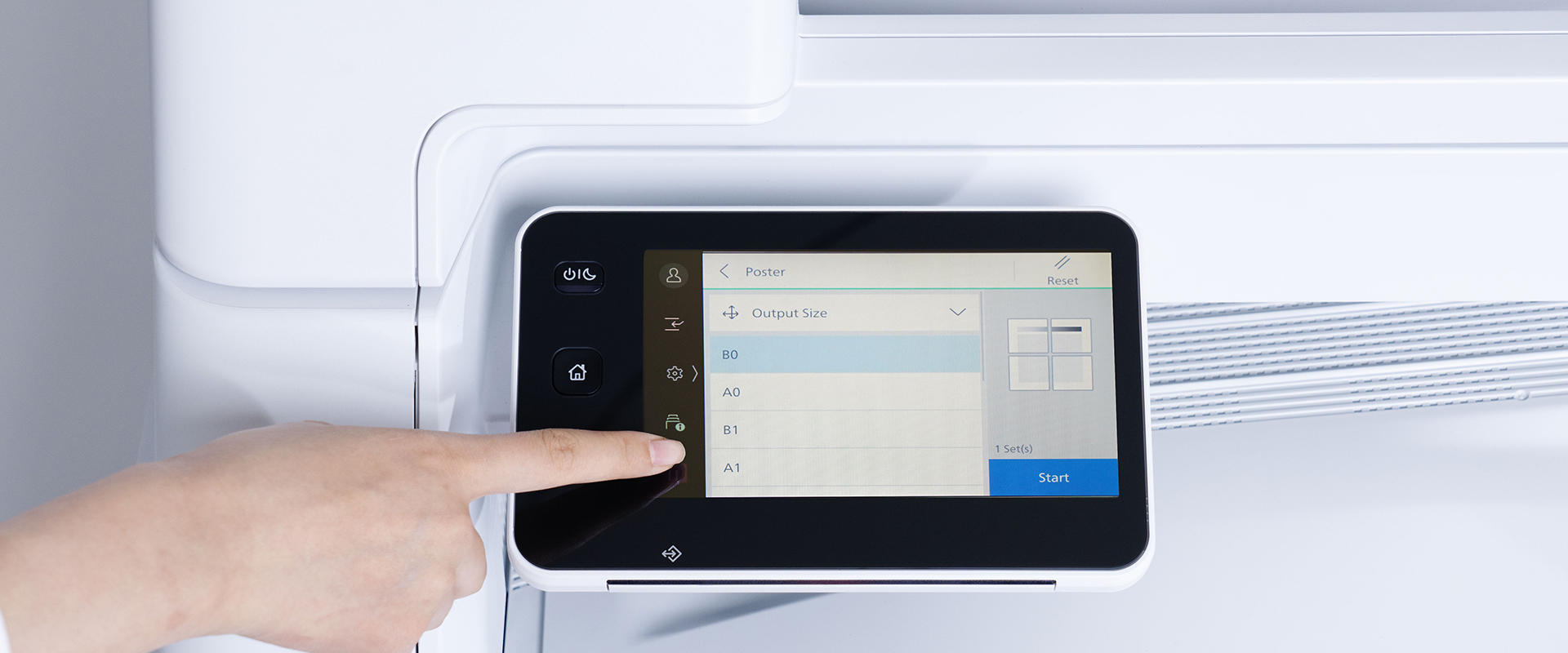

| Operation panel |
7inch touch screen |
| Duplex printing |
YES |
| Wired network printing |
YES |
| Airprint |
NO |
| Mopria |
NO |
| USB flash drive print |
YES |
|
Copy |
| Copy Speed |
30ppm |
| Duplex Copy Speed |
20ipm |
| First copy out time |
Platen:４.5s;
RADF: 7.5s |
| Copy Type |
Text/photo、text（default）、photo、light text |
| Copy Resolution (max.dpi) |
600x600dpi |
| Copy Pages |
1-999 pages |
| Copy reduce / enlarge settings |
25-400% |
| Other copy function |
Image rotation, border removal, ID card copying |
|
Scan |

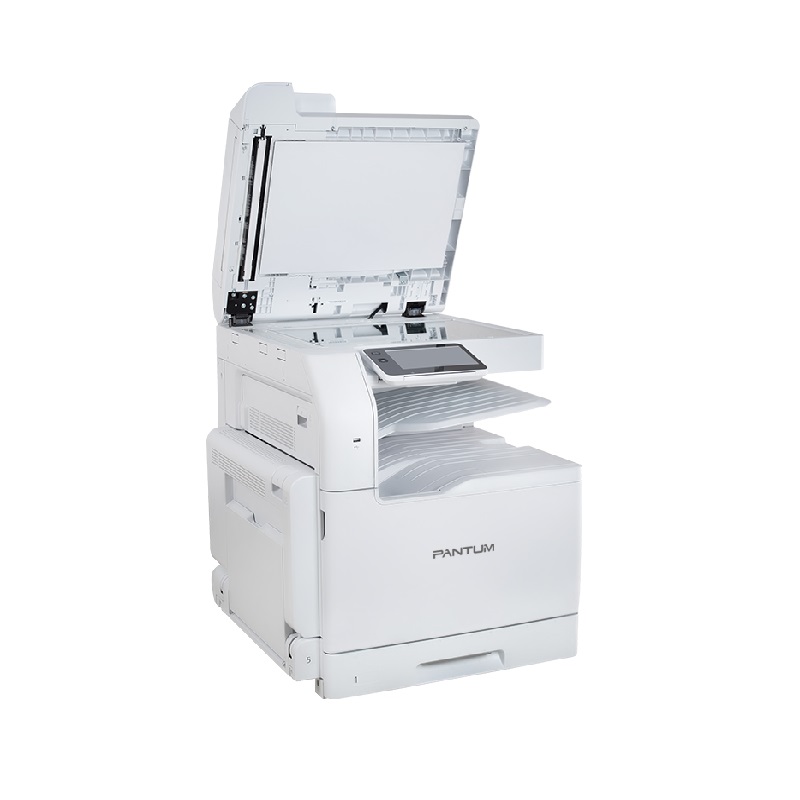

| Scanner type |
Flatbed+ADF |
| Scan technology |
CCD |
| Feeder type |
RADF |
| ADF capacity |
110 pages |
| Scan Speed |
55ppm |
| Duplex Scan |
21ipm |
| Scan Area |
Max A3 |
| Scan resolution |
Maximum：600x600dpi |
| Scan format |
Gray Scale/Color：TIFF, JPEG, PDF
BW : TIFF, PDF |
| Scan Destinations |
Scan to PC（SMB, FTP, WSD）/USB/Email(SMTP) |
| Scanner Application |
YES |
|
Paper handling |
| Paper Input Capacity |
Standard：500 pages
Multifunctional paper tray：96 pages
Standard：596 pages;
Maximum：2096 pages |
| Paper Output Capacity |
400pages（A4 landscape ），200pages（A3） |
| Paper output full dectation |
YES |
| Media Types |
Bond, Plain, Recycled, Plain Reload, Custom, Heavy, Labels, Envelopes |
| Media sizes |
A6、A5、A4、A3、B6、B5、B4、5.5×8.5’'、7.25×10.5‘'、8×10’'、8.5×11‘' 、215x315mm、8.5×13’'、8.5×14'‘、11×15’'、11×17‘'、A4-Cover、Letter-Cover （9x11’'）、16K、8K、Post card、Double post card、Envelop |
| Media weight |
Standard paper input tray：60 - 256g/㎡，
Multipurpose tray：60 - 216g/㎡
Optional paper input tray： 60 - 256g/㎡ |
|
General |
| Product Dimensions(D*W*H) |
590x659x771 mm
590*659*885mm(with PT-270 )
590*659*1122 mm(with PT-270X)
590*659*1122 mm(with PT-270H）
1136*659*1122 mm(with PT-270X and PF-270/PF-270X)
1136*659*1122 mm(with PT-270H and PF-270/PF-270X) |
| Package Dimensions(D*W*H) |
745*692*890 mm（without pallet）
|
| Product net weight（kg） |
51.74kg |
| Product gross weight（kg） |
65.8kg |
| Standard cartridge Dimensions(D*W*H) |
K：447 x 76 x 82 mm
Drum Unit：467 x 122 x 100 mm |
| Standard cartridge package Dimensions(D*W*H) |
K：456*77*83mm
Drum Unit：584*190*183 mm |
| Standard cartridge net weight（kg） |
K：0.79kg
Drum Unit：1.75kg |
| Standard cartridge gross weight（kg） |
K：0.9kg
Drum Unit：2.4kg |
| Print environment |
Recommended Temperature：10 - 28°C
Humidity range：15 - 85%
Altitude：0 - 2500 meters（8200 feet） |
| Power |
AC220-240V、50/60Hz、8A |
| Noise |
Ready：3.17 B
Operation：6.72 B |
| Power Consumption |
Print average：1920w
Ready：93w（220V）
Sleep：0.4w |
| Interface |
High-speed USB2.0, 3.0
Ethernet100Base-TX/10Base-T/1000Base-T |
| Windows system |
Windows11/Windows 10/ /Windows server2022/Windows Server 2019/Windows Server 2016 /Windows Server 2012 R2/Windows Server 2012 (32bit/64bit) |
| Mac system |
MacOS 13/12/11/10.15/10.14 |
| Linux system |
Redhat 9/8，Ubuntu 22.04/20.04 |
|
Consumable |
| Consumable Type |
Toner Cartridge & Drum Unit |
| Starter cartridge |
TO-2600H：30000 pages |
| Starter drum unit |
DO-2600：82000 pages |
| Standard cartridge*5 |
TO-2600H：30000 pages |
| Standard drum unit |
DO-2600：82000 pages |
|
Options |
| Optional paper tray |
PT-270 500 pages
PT-270H 500 pages*3
PT-270X 500pages+cabin |

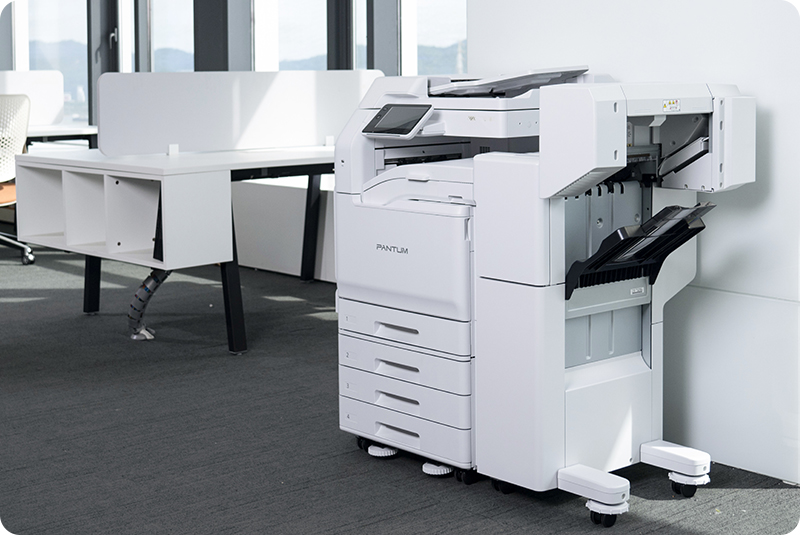

| Finisher |
PF-270/PF-270X finisher
PK-270B saddle stitch unit
PK-270P punching unit |
|
Notes |
|
1. The maximum monthly print load is the range of pages to help customers evaluate product offerings based on the average number of pages customers are prepared to print on the device each month. Customers are advised that the number of pages printed per month should be within the device's recommended range for optimum performance. In addition, other factors that should be considered include: consumable replacement intervals, paper loading intervals, print speeds, and typical applications of the customer. |
|
2. This resolution specification cannot be displayed on the official website or any promotional materials, and is only used as a bidding specification. |
|
3. The paper capacity is calculated according to the 75g/㎡ standard test paper. If the paper thickness or weight is different, the capacity will be affected. |
|
4 The output tray specifications are affected by the printing environment, paper brand, paper weight, etc., and the actual specifications may vary. |
|
5. Cartridge capacity is the average yield of the toner cartridge in test one-sided (single-sided) mode for continuous printing, based on the ISO/IEC 19752 standard for color machines. Actual yields may vary based on device speed, paper size and orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity, among other factors. |
|
